Hot Air Balloon Fabric Types: Nylon vs Polyester Explained | CHUTIST
What Are Hot Air Balloon Fabrics?

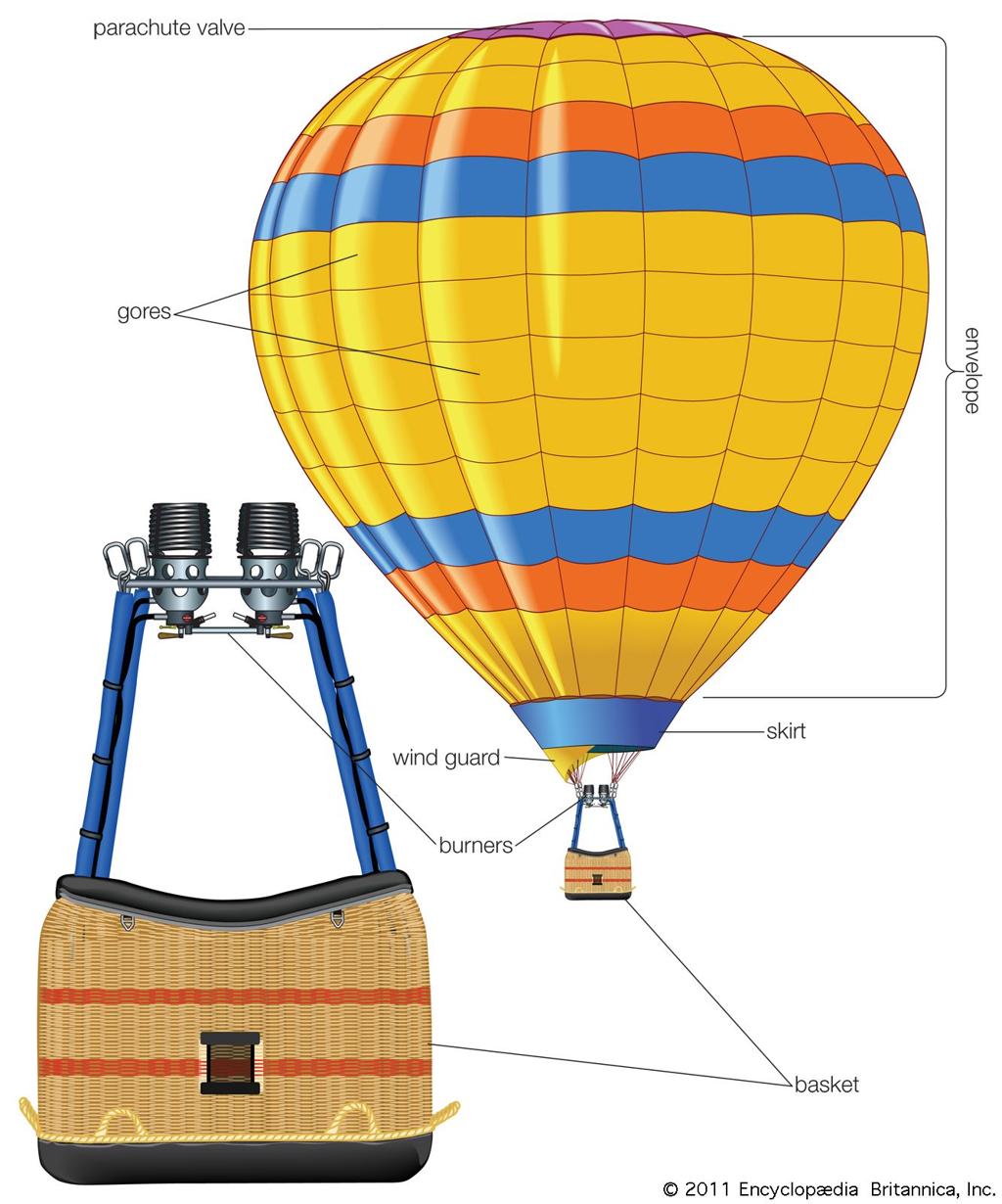

Hot air balloon fabrics are the primary structural materials used to construct the balloon envelope — the large, inflatable canopy that generates lift through heated air. The fabric must withstand continuous thermal stress, UV radiation, wind loads, and mechanical tension throughout its operational lifespan.
Two material categories dominate modern hot air balloon construction: nylon and polyester. Each offers distinct performance characteristics suited to different operational requirements, flight frequencies, and regulatory environments.
This guide examines the technical properties of both fabric types, their respective advantages and limitations, and the key factors that manufacturers and operators consider when selecting envelope materials for manned hot air balloon applications.
Nylon Fabric in Hot Air Balloon Envelopes
Nylon, specifically ripstop nylon with silicone or polyurethane coatings, is one of the most widely used materials in hot air balloon envelope construction. Its popularity stems from a favorable balance of weight, strength, and flexibility.
Key technical properties of nylon balloon fabric:
Nylon fabrics typically weigh between 20 and 40 grams per square meter (gsm) in their coated form, making them among the lighter options available for envelope construction. This low mass-to-strength ratio allows manufacturers to produce envelopes that are easier to handle during setup and packing, reducing ground crew workload between flights.
Tensile strength in nylon ripstop fabrics ranges from 80 to 150 kg per 5 cm strip width, depending on the specific weave construction and coating formulation. The ripstop weave pattern — featuring reinforced crosshatch threads at regular intervals — provides tear resistance and prevents small punctures from propagating across the fabric surface.
Thermal resistance is a critical consideration for hot air balloon applications. Standard nylon begins to lose structural integrity at temperatures above 200°C. In practice, balloon envelope fabrics operate at temperatures between 80°C and 120°C during normal flight, well within acceptable limits. However, localized hot spots near the burner envelope and prolonged thermal exposure over multiple flights can accelerate aging in unprotected nylon fibers.
Nylon fabric is also susceptible to UV degradation over extended outdoor exposure. Uncoated nylon fibers can lose up to 50% of their tensile strength after 500 hours of concentrated UV exposure. For this reason, balloon envelope manufacturers apply protective coatings — typically silicone or polyurethane — to shield the base fibers from UV radiation during storage and ground operations.
Polyester Fabric in Hot Air Balloon Envelopes
Polyester, particularly high-tenacity polyester (HT polyester) with PVC or polyurethane coatings, represents the other dominant material category in hot air balloon envelope construction. Polyester envelopes are favored in applications where long-term durability and resistance to environmental factors take priority over weight savings.
Key technical properties of polyester balloon fabric:
Polyester fabrics used in balloon envelopes typically weigh between 30 and 50 gsm in their coated configurations. While slightly heavier than equivalent nylon constructions, polyester offers superior long-term dimensional stability — the fabric resists stretching and sagging over repeated thermal cycles more effectively than nylon.
Tensile strength in HT polyester fabrics ranges from 100 to 200 kg per 5 cm strip width, generally exceeding the strength of comparable nylon materials. This makes polyester envelopes particularly suitable for large-format balloons operating at higher altitudes or in regions with unpredictable wind conditions.
UV resistance is a significant advantage of polyester over nylon. Polyester fibers exhibit inherent UV stability and maintain their mechanical properties significantly longer under prolonged sun exposure. Envelope manufacturers report that polyester fabrics typically retain 80-85% of their original tensile strength after 1,000 hours of accelerated UV testing, compared to 60-70% retention for equivalent nylon constructions.
Thermal stability in polyester is also superior. High-tenacity polyester maintains structural integrity at temperatures up to 260°C, providing a substantially larger thermal safety margin than nylon. This characteristic makes polyester envelopes particularly well-suited for commercial tourism operations, where flights are conducted multiple times daily and cumulative thermal stress accumulates faster.
The primary trade-off with polyester is reduced flexibility in cold temperatures. Below -10°C, polyester fabrics become noticeably stiffer, which can complicate packing and setup procedures in winter operating environments. Operators in cold-climate regions typically store polyester envelope systems in climate-controlled facilities between flights.
Comparative Analysis: Nylon vs Polyester
Selecting between nylon and polyester for a hot air balloon envelope requires evaluating multiple performance factors against the specific operational profile. The following comparison summarizes the key differentiators:
Weight: Nylon fabrics offer a weight advantage of approximately 15-25% compared to equivalent-strength polyester constructions. For operators prioritizing portability and rapid deployment — such as event-based operations requiring multiple setup-and-teardown cycles per day — this weight advantage can translate into meaningful efficiency gains.
Durability and longevity: Polyester fabrics generally outperform nylon in terms of service life under heavy operational use. Commercial tourism operators who conduct 5-10 flights per day typically report polyester envelope lifespans of 8-12 years, compared to 5-8 years for nylon envelopes under equivalent usage patterns.
UV and weather resistance: Polyester demonstrates measurably superior resistance to UV-induced degradation and moisture absorption. Nylon fabrics absorb more water — up to 10% of their dry weight — which can affect coating adhesion and accelerate fiber degradation in humid operating environments.
Initial cost: Nylon envelope systems typically carry a lower initial purchase price than equivalent-size polyester systems, making them more accessible for entry-level operators, flight schools, and private owners with limited capital budgets.
Repair and maintenance: Both fabric types support field repairs using compatible adhesive patches and heat-sealing techniques. However, nylon coatings — particularly silicone coatings — can be more challenging to bond during field repairs compared to PVC-coated polyester, which bonds more readily with standard envelope repair materials.
| Property | Nylon Envelope | Polyester Envelope |
|---|---|---|
| Weight (gsm, coated) | 20–40 | 30–50 |
| Tensile strength (kg/5cm) | 80–150 | 100–200 |
| Max service temperature | ~200°C | ~260°C |
| UV resistance | Moderate | High |
| Cold-temperature flexibility | Good | Reduced below -10°C |
| Typical service life | 5–8 years | 8–12 years |
| Initial cost | Lower | Higher |
Envelope Coatings and Their Role
Regardless of base fabric choice — nylon or polyester — the functional performance of a hot air balloon envelope depends heavily on the coating applied to the fabric surface. The coating serves multiple critical functions: gas retention (preventing helium or hot air from escaping through the fabric pores), UV protection, abrasion resistance, and waterproofing.
Common coating materials:
Silicone coatings are applied to nylon envelopes and provide excellent UV resistance, flexibility across a wide temperature range, and good gas retention properties. Silicone-coated nylon envelopes are widely used in recreational and sport ballooning applications.
Polyurethane (PU) coatings offer good gas retention and moderate UV resistance at a lower cost than silicone. PU-coated fabrics are commonly found in mid-range envelope systems.
PVC (polyvinyl chloride) coatings are typically applied to polyester base fabrics. PVC coatings provide excellent durability, chemical resistance, and long-term UV stability. They bond effectively to polyester fibers, creating a robust composite structure that resists delamination over years of operational use.
Fluorocarbon coatings represent a premium option applied to both nylon and polyester base fabrics. These coatings offer the highest level of stain resistance, water repellency, and surface durability, extending the intervals between full envelope cleaning and maintenance.
Envelope coating weight typically adds 8-15 gsm to the base fabric, and the coating accounts for a significant portion of the envelope's total cost. Operators should factor coating type and condition — not just base fabric — when evaluating envelope performance and maintenance requirements.
Safety Standards and Regulatory Requirements
Hot air balloon envelope materials are subject to regulatory oversight in most jurisdictions where manned balloon operations are conducted. Compliance with fabric-related safety standards is a prerequisite for airworthiness certification.
Key standards governing balloon envelope materials:
In the European Union, balloon envelopes must comply with EASA CS-31GB (Certification Specifications for Hot Air Balloons) or the equivalent JAR-22 standards. These specifications define minimum fabric strength requirements, minimum tear resistance values, and requirements for documentation of material test data including tensile strength, seam efficiency, and coating adhesion.
In the United States, the FAA regulates hot air balloon airworthiness under 14 CFR Part 31 (Airworthiness Standards for Manned Free Balloons). The standards require that envelope materials meet documented minimum burst strength and that manufacturers provide fabric batch test certificates to demonstrate compliance.
In China, the Civil Aviation Administration of China (CAAC) oversees balloon airworthiness certification. Manufacturers supplying envelopes for CAAC-registered balloons must provide material test data from accredited testing laboratories, including fiber tensile tests, seam strength tests, and coating adhesion measurements.
When evaluating envelope materials for procurement or renewal, operators should request the following documentation from manufacturers or suppliers:
Base fabric batch test certificates (tensile strength, elongation at break)
Coating adhesion test results
UV aging test reports (if available)
Seam efficiency test data
Manufacturer's recommended inspection intervals and service life limits
Fabric condition inspections should be conducted at regular intervals — typically before each operating season or after every 100 flight hours — with particular attention to coating condition, seam integrity, and signs of UV or thermal degradation in high-stress areas such as the throat panel and equatorial band.
How to Select the Right Fabric Type
Selecting between nylon and polyester for a hot air balloon envelope depends on several operational factors specific to the operator's use case and environment. The following framework provides a structured decision reference:
Choose nylon envelope fabric when:
The primary use case involves recreational flying, sport ballooning, or occasional event operations with fewer than 2-3 flights per week
Weight and portability are priorities — such as operations requiring frequent transport or deployment in remote locations
Initial capital budget is constrained and lower acquisition cost is a primary selection criterion
Operating environments are predominantly temperate with moderate UV exposure
The balloon is intended for private ownership rather than commercial rental or tourism operations
Choose polyester envelope fabric when:
The balloon will be used for commercial tourism operations with 3 or more flights per week
Long-term total cost of ownership — rather than initial purchase price — is the primary financial consideration
Operations are conducted in high-UV or high-altitude environments with elevated solar radiation
Extended service life (10+ years) is desired from a single envelope investment
The operating jurisdiction imposes stringent airworthiness inspection intervals that reward durable materials
Manufacturers experienced in envelope production can provide guidance on fabric selection based on specific flight profiles, geographic operating regions, and certification requirements. Requesting material samples and reviewing manufacturer-provided test data before purchase commitment is a standard practice among experienced balloon operators.
Frequently Asked Questions
Which is better for hot air balloon fabric, nylon or polyester?
Neither fabric type is universally superior — the answer depends on operational requirements. Polyester offers greater long-term durability, UV resistance, and service life, making it preferable for commercial operations. Nylon provides a weight advantage and lower initial cost, making it suitable for recreational and occasional-use balloons.
How long does a hot air balloon envelope last?
Envelope service life depends on material type, flight frequency, storage conditions, and adherence to maintenance schedules. Nylon envelopes typically last 5-8 years under regular use, while polyester envelopes commonly operate safely for 8-12 years with proper maintenance.
Can hot air balloon fabric be repaired?
Yes. Both nylon and polyester envelope fabrics support field repairs using compatible adhesive patches and heat-sealing equipment. Silicone-coated nylon can be more challenging to repair than PVC-coated polyester. Major repairs — including seam reconstruction and large-area patching — should be performed by certified envelope repair facilities.
What coatings are used on hot air balloon envelopes?
Common coatings include silicone (typically on nylon), polyurethane (on nylon or polyester), PVC (primarily on polyester), and fluorocarbon (premium option for both base fabrics). The coating provides gas retention, UV protection, and surface durability.
How often should balloon envelope fabric be inspected?
Most manufacturers and aviation authorities recommend a thorough fabric condition inspection at least once per operating season, or after every 100 flight hours, whichever comes first. Inspections should assess coating condition, seam integrity, UV degradation signs, and mechanical damage.
Nanjing Hongguang General Aviation Equipment Technology Co., Ltd. has been engaged in hot air balloon research, development, and manufacturing since 1984, and has undertaken multiple national-level balloon technology programs. The company's envelope production capabilities cover a range of fabric types and configurations to meet diverse operational requirements.
